A public artwork fee is ready to light up London’s Thames bridges on an unprecedented scale.
The River Thames has been an necessary commerce and transport route for hundreds of years, enjoying a key position in London’s progress and improvement. Now it’s hoped that the subsequent part of a brand new artwork set up will remodel the river at evening, casting a recent gentle on town’s wealthy heritage of structure and infrastructure.
Illuminated River is being delivered by the Illuminated River Basis, with the help from the Mayor of London and funders together with the Rothschild Basis, Arcadia, the Blavatnik Household Basis and the Reuben Basis. Section one of many mission was accomplished in summer season 2019.
When the entire mission is full, as much as 14 of the bridges straddling the Thames will likely be illuminated by an LED set up. Designed and programmed by New York-based artist Leo Villareal, the mission would be the longest public artwork fee on the earth because it covers a 3.7km part of the Thames. It’s anticipated that it is going to be seen 130M occasions every year of its decade lengthy lifespan.
The general mission funds equates to a mean price of £3M for every bridge. This consists of design, implementation and subsequent upkeep for the 10 years to 2029.
Villareal, working in partnership with architect Lifschutz Davidson Sandilands, goals to attract consideration to the bridges, their relationship with each other and the communities they join on both financial institution.
We’re proper in the midst of the mission, engaged on 5 separate buildings, throughout 5 websites successfully
FM Conway was appointed to put in the required cabling and LEDs for 4 bridges – London Bridge, Cannon Road Railway Bridge, Southwark Bridge and the Millennium Bridge – as a part of the primary part of works.
The contractor has since been appointed to ship the second part of works, which incorporates Blackfriars Bridge, Waterloo Bridge, the Golden Jubilee Footbridges, Westminster Bridge and Lambeth Bridge. The contract for the remaining bridges – Tower Bridge, Vauxhall Bridge, Grosvenor Railway Bridge, Chelsea Bridge and Albert Bridge – has but to be awarded.
As this concern of NCE went to press, the staff was about three quarters of the best way by means of work on part two. “We’re proper in the midst of the mission, engaged on 5 separate buildings, throughout 5 websites successfully,” explains FM Conway senior contract supervisor Adam Barnes.
“The 4 bridges in part one had been positioned barely nearer collectively, however the places for part two are way more dispersed.”
You suppose one bridge may be simpler than one other, however really all of them have their very own complexities
Section two began in July and consists of set up of round 4,000 gentle fittings, 15km of energy and fibre optic cabling and cable trays, in addition to roughly 250,000 fixings. To enhance effectivity, work on every bridge is staggered, with a two week interval between every begin date.
“Blackfriars was one of many first to start out, so subsequently it’s the primary to complete. Waterloo was the final to start out in August, so we’re as a consequence of end in early December,” explains Barnes.
In addition to putting in the lighting scheme, FM Conway has additionally been tasked with delivering structural design components as a part of a JCT contract.
“We’ve been given a CDP design pack [contractors design package], so we’re successfully doing the drawings and the design for the structural components. We’ve been given an idea and a RIBA stage 4 drawing, and we’re bringing all of it to life,” says Barnes.
He describes the staff as “building ninjas”, putting in the sunshine fittings with such accuracy that they match seamlessly with the aesthetics of every construction. “The measure of a job effectively executed is that you would be able to’t discover it till it’s nightfall and the lights go on,” he provides.
We’re getting access to components of those buildings that haven’t been accessed for years
Whereas the lighting design is exclusive to every bridge, the contractor’s method on web site is equally tailor-made to the various necessities of every construction. “Every bridge is totally distinctive in its nature, so you must take a look at it when it comes to the precise geographical place, its building, and the impression on its surroundings and environment,” explains Barnes.
FM Conway buildings director Matt Smith describes the work on Blackfriars Bridge as exemplifying the complexity of the mission. The proximity to railway infrastructure has meant that any closures on Blackfriars’ highway bridge additionally required the identical span to be closed on the neighbouring railway bridge. “It has required lots of negotiation with Community Rail,” he says. “It doesn’t matter which bridge you’re engaged on – you suppose one bridge may be simpler than one other, however really all of them have their very own complexities.”
100 staff on web site
With round 100 staff throughout the 5 pan-London websites every day, accessibility has been a serious concern on the mission, notably when social distancing necessities are added to the combination. And in addition to having restricted entry, Westminster and Lambeth bridges are positioned inside authorities safety zones, including yet one more layer of complexity.
The staff has labored carefully with key stakeholders alongside the Thames, in addition to introducing some modern approaches to beat entry challenges.
“The mission is a real instance of collaborative working,” insists Smith. “Now we have three subcontractors working with us to offer rope entry and supply of supplies to the websites.”
It’s this work with stakeholders that helped part one of many mission win the Small Challenge of the 12 months class on this 12 months’s British Development Trade Awards.
E-cargo bikes
The contractor has additionally trialled the usage of e-cargo bikes on the mission, decreasing the variety of building automobiles travelling into town. Every bike can carry as much as 250kg and is fitted with an electrical pedal help motor and GPS monitoring. Whereas the bikes are clearly no alternative for lorries, they’re a step in the suitable course in the direction of bettering sustainability in building.
Efforts to growing efficiencies throughout the mission have additionally made it essential to have an open and frank dialogue with the availability chain and key stakeholders, together with the consumer. “There’s a degree of honesty and openness. It’s warts and all, which lets you have productive conversations,” says Smith.
FM Conway’s long-standing relationships with most of the bridge homeowners and engineers, in addition to different contractors on the river like Tideway, has allowed the staff to resolve points rapidly whereas working inside tight time frames.
“There’s a superb degree of belief. They know we’ve obtained one of the best pursuits of the buildings at coronary heart,” explains Smith.
“We’re not simply slapping brackets on. It truly is about ensuring these buildings are handled accurately.”
The contractor has additionally gained distinctive perception of the buildings’ situation over the course of the mission, permitting the staff to feed again to the bridge homeowners about essential upkeep and restore works.
“We’re getting access to components of those buildings that haven’t been accessed for years,” Smith provides. “It’s a chance for us to inform the homeowners what we’ve recognized. We’re in a position to take our Illuminated River hat off and put our bridge upkeep hat on.”
When the contractor is completed on web site and has accomplished handover to the consumer, the subsequent stage of part two will start in early 2021. It will contain aiming and focusing the lights, with Villareal due on web site in March to finalise the work.
Whereas the contract for the third and closing part of the mission has but to be awarded, the staff is primed to embrace the teachings discovered and embed them on future schemes. “The most important factor for me is ensuring we proceed this degree of planning, from begin to end on future initiatives,” says Barnes.
“Additionally, extra usually, I’ve seen how necessary it’s to actually clarify your self and provides folks the info and knowledge they want. Every thing is so much simpler if everybody can present readability and speak brazenly and freely throughout a mission.”
Lighting for various results
Whereas the scheme for every bridge is totally different, lighting agency Signify’s Attain LEDs have usually been used to light up the underside of the bridge soffits, whether or not they’re hung from steelwork, mounted to current stonework piers and abutment partitions, or on brackets above the piers and abutments.

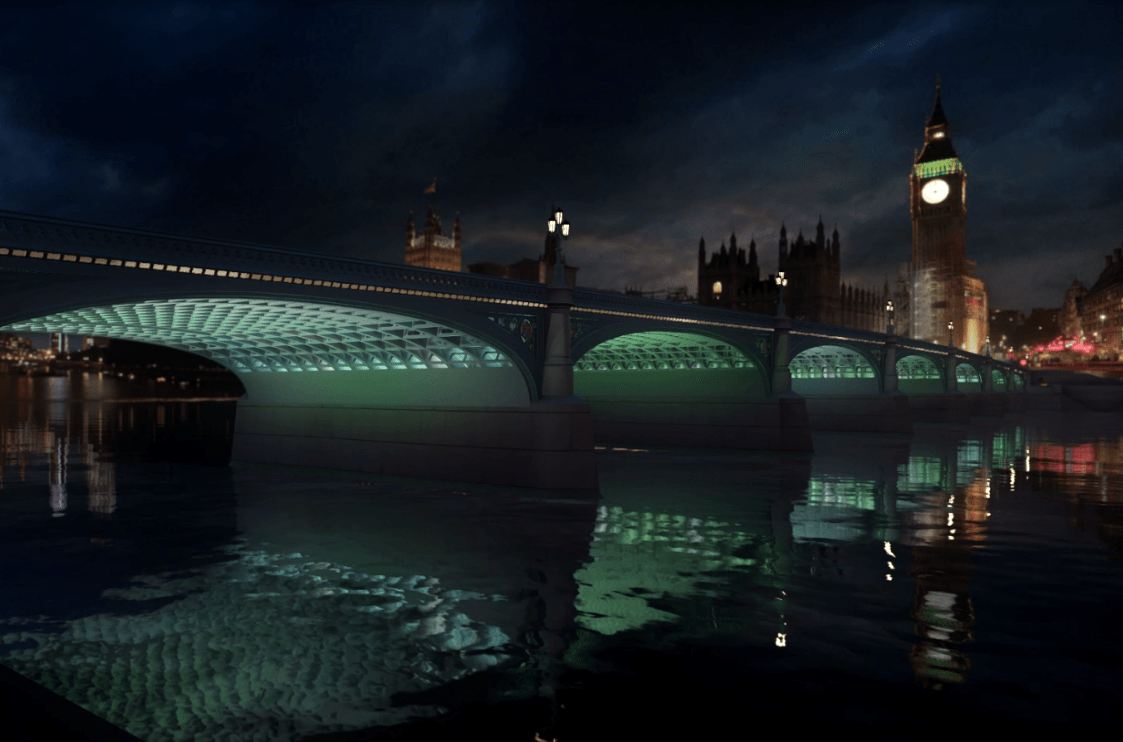

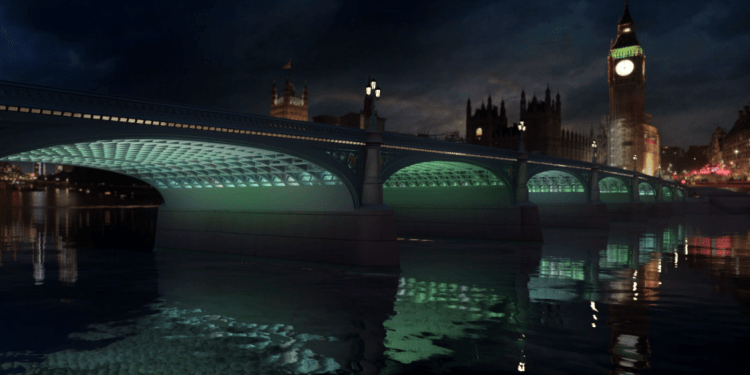

However Villareal’s design is tailor-made to the construction and type of every of the bridges, with totally different fittings chosen to create particular lighting results. For instance, Signify’s Linear Graze LEDs will likely be used for Lambeth Bridge, to create a linear blade of sunshine alongside the façade of the construction. Adjoining Westminster Bridge will likely be accented with String Node LEDs that are utilized in small areas to focus on detailed sections of the construction.
“They [the Node LEDs] are additionally utilized in actually tight clusters on the Golden Jubilee Bridge the place they’re packed into current areas on the parapet sections of the bridge,” explains Barnes.
“We’re additionally utilizing the Accent gentle, which is new for us. It’s much like the linear gray – it’s an extended becoming that will likely be put in alongside the façade of Waterloo Bridge. It creates a gentler wash, reasonably than a stable blade of sunshine.”
