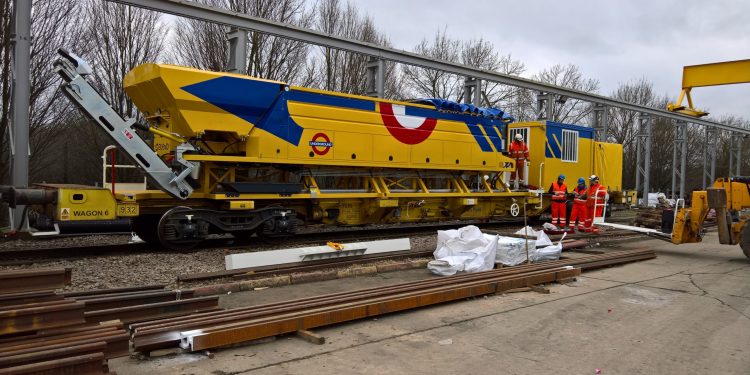

Rail Mounted Concrete Mixing Plant for London Underground

In 2013 Blend Plants took half in an essential venture to create a plant for London Underground necessities.

Our cellular mixing plant for concrete manufacturing was chosen due to its new technological versatility: a particular automated plant of 17 m size, 11 tones weight and 15 m3 capability.

The venture planning was adopted with persistence and keenness as a result of Blend Plants wished to create a plant in a position to fulfill all buyer necessities:

• London Underground operators wished to discover a strategy to slab monitor the underground line with out closing the road for two years.
• The assembly between Mix Vegetation and London Underground in 2013 was solely the primary of a sequence of conferences, discussions and drawings about requirements that Mix plant needed to adjust to. The machine had to have the ability to arrive by the oldest tunnel on the planet, dated 1861, to exchange the ballast with quick setting concrete, in order that trains might cross over it after 2 hours.
• Good data of dosing processes and elements mixtures made attainable the development of a cellular mixing plant that mixes concrete immediately on web site with a resistance RCK 15 inside 2 hours, to maintain trains working the identical morning, and RCK 65 in 28 days.
• Because of the Mix plant, the road from Baker Avenue to Finchley Street isn’t closed, operators are working through the nights whereas trains will not be working: this has already proven a discount in line issues. Technicians now not have to supply concrete by hand each evening within the London tunnel, however they’re supported by Mix plant, within the automation of the manufacturing system: management and weight techniques for cement and aggregates, dosing sensors for admixtures and water, sand humidity probes assure the manufacturing of concrete with the requested qualities.

Security is assured utilizing obstacles (chains and doorways) on board, hearth extinguishers and sign lights that warn about plant passage within the tunnel.

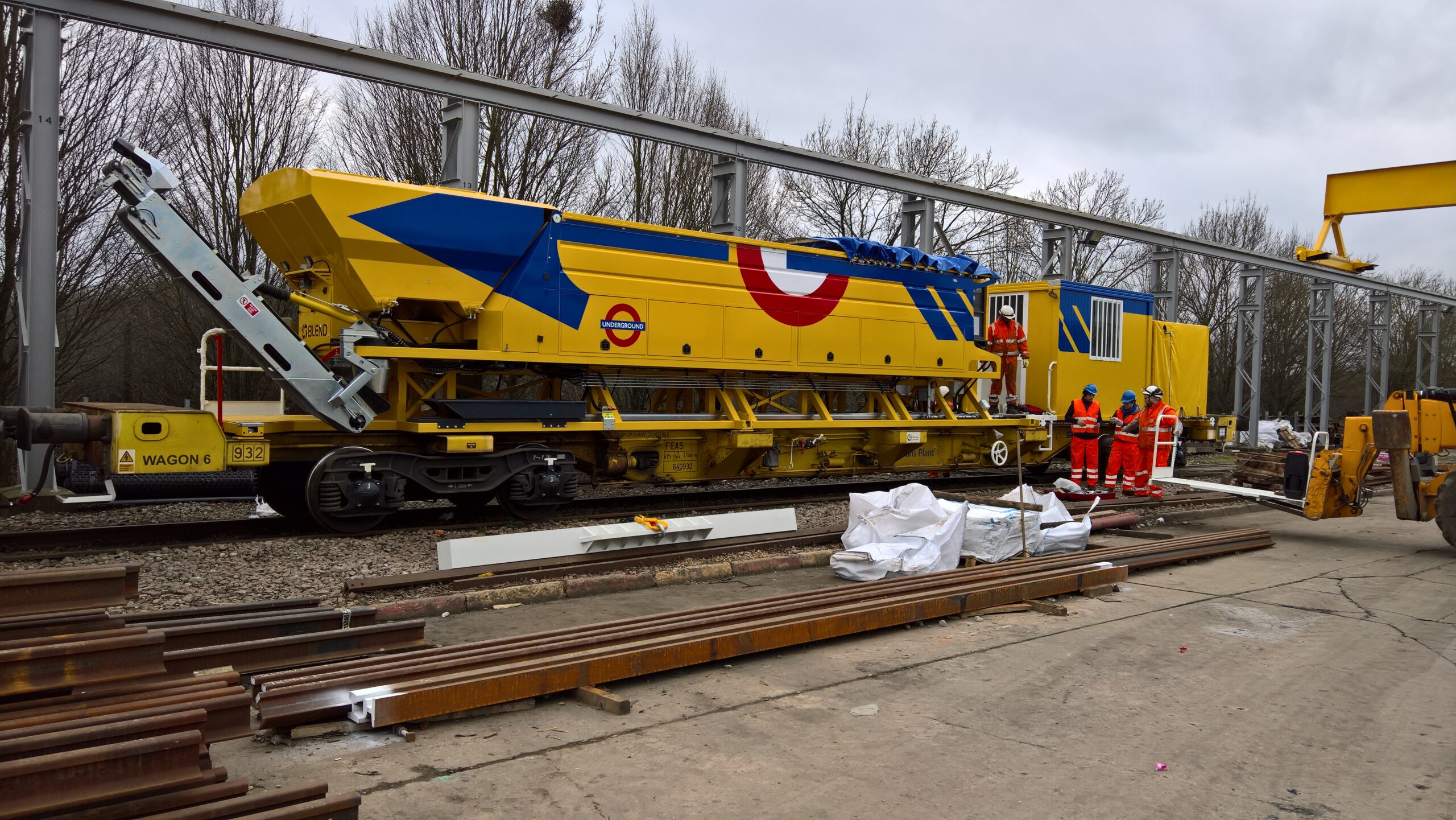

This cellular mixing plant for concrete, on a single railway wagon, is powered by battery locomotives: that is the primary and just one on the planet to be powered by batteries. This technique reduces fumes, hazards and improves office circumstances and the well being of employees.

From 16th Could 2016 Mix plant has been working continuous, producing kind eight m3 to 15 m3 of concrete per evening.

This text was initially printed by Blend Plants in 2017.
